Elinx EIRP600 PoE Series
EIRP Industrial Managed PoE Switch
Power over Ethernet (PoE) means that power is transmitted over the Ethernet cable along with the data lines. Each PoE switch has a set of ports that is classified as power source equipment (PSE). Since the ports can power IEEE 802.3af compliant powered devices (PD), the need for a separate power line to be run to each end device is eliminated.
Buy the PoE Gigabit switch now or see the Details, Specs, Downloads, and Accessories tabs for further information.
(port #) indicates the port is a combination port, where the copper media is shared with the SFP slot. Once the SFP slot is filled with an SFP module, the copper port is disabled.
Buy the PoE Gigabit switch now or see the Details, Specs, Downloads, and Accessories tabs for further information.
(port #) indicates the port is a combination port, where the copper media is shared with the SFP slot. Once the SFP slot is filled with an SFP module, the copper port is disabled.
Details

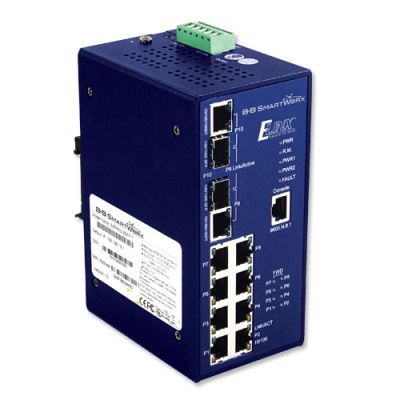

The EIRP610-2SFP-T is a 10 Port Managed Industrial PoE Gigabit Ethernet Switch. In addition to 8 PoE copper RJ-45 ports, it has 2 RJ-45/SFP Combo ports to accommodate Gigabit Ethernet.
Small Form-factor Pluggable (SFP) Port: The SFP Ports provide flexibility when planning a network. Modules are available in multiple fiber formats. If an SFP module is not inserted, the associated combo port can be used with standard RJ-45 copper.
High-Speed Transmissions: The switch includes a switch controller that automatically senses transmission speed (10/100/1000 Mbps). The RJ-45 interface also auto-detects MDI or MDI-X, eliminating the requirement for a crossover cable. Each port is buffered and supports store-and-forward protocol.
Power Over Ethernet (PoE): The eight 10/100 ports are classified as power sourcing equipment (PSE). These ports can be used to power IEEE 802.3af compliant powered devices (PD), eliminating the need for a separate power supply for each device.
Dual Power Input: To reduce the risk of power failure, the switch has two 48 VDC power inputs.
Product Documentation
EIRP610-2SFP-T
