Embedded USB Hub Module
OEM USB Hub Module
Embedded USB 2.0 Hub

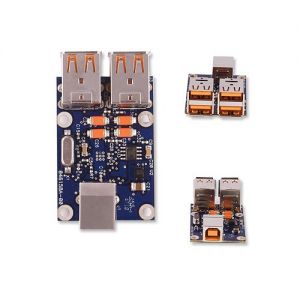

Our USBHUB4OEM is an ultra-compact “bare board” four port embedded USB hub. With OEM implementation in mind, our engineers pushed the limit on miniaturization in a design that is quick and easy to install. Cost effective, off the shelf USB cables connect the OEM USB hub to the other equipment inside your device. And, there’s no need to worry about them shaking loose with our popular “high retention” USB connectors.
Details
This bare board hub has four downstream USB ports. It is USB port powered and can supply 100 mA to downstream devices. The hub measures 36 x 51 x 18 mm. It supports USB 2.0 up to 480 Mbps (High Speed) and is backward compatible with USB 1.1 Full Speed (12 Mbps) and Low Speed (1.5 Mbps)
Specifications
USB Bus Powered
Downstream Power: 100 mA per port
USB Compatibility: USB 1.1 & 2.0
Speed: High (480 Mbps), Full (12 Mbps), and Low (1.5 Mbps)
OS Support: Installs as a generic USB Hub on Windows OS’s.
Downstream Ports: Four high retention USB Type A Female
Upstream Port: One high retention USB Type B Female
Pull Force Required to Disconnect Cable: 3.4 Lbs. force
Mounting: Four grounded mounting holes on PCB
Operating Temperature:(-) 40 to (+) 80 °C
ESD Protection: +/- 8 kV contact, +/- 15 kV Air
RI: 10V/m, 80-1,000 MHz; 3V/m, 1.3 to 2.3 GHz
EFT Burst: +/- 500 V, signal ports
CI: 3 Vrms
