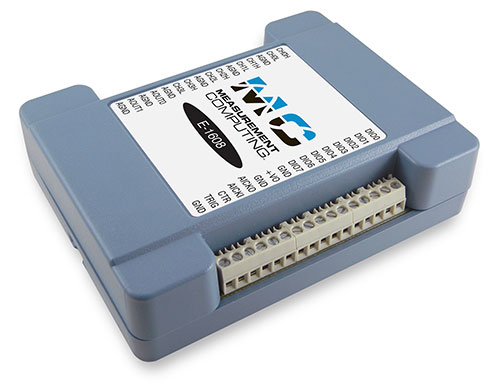

E-1608

16-Bit Multifunction Ethernet DAQ Device

Key Highlights

16-bit high-speed Ethernet device

Sample rates up to 250 kS/s

8 SE/4 DIFF analog inputs

Two 16-bit analog outputs

Eight individually-configurable digital I/O

One 32-bit counter input

Includes a built-in 10/100 BASE-T auto-negotiation, high-speed communication port

Requires a TCP/IP and UDP connection to a network or computer

Includes CAT-6 Ethernet cable and 5 V power supply adapter

Screw-terminal connectors

Board-Only OEM Version Available

Software

Support for DAQami, easy-to-use advanced data logging application to acquire,
view, and log data

TracerDAQ® for acquiring and displaying data and generating signals

Universal Library includes support for Visual Studio® and Visual Studio® .NET,
including examples for Visual C++®, Visual C#®, Visual Basic®, and Visual Basic® .NET

Universal Library for Android™ includes support and examples for the Android 3.1
platform (API level 12) and later

DASYLab® and NI LabVIEW™ drivers

InstaCal™ software utility for installing, configuration, and testing

Supported Operating Systems: Windows® 8/7/Vista®, 32-bit or 64-bit;
Android 3.1 (API level 12) and later
