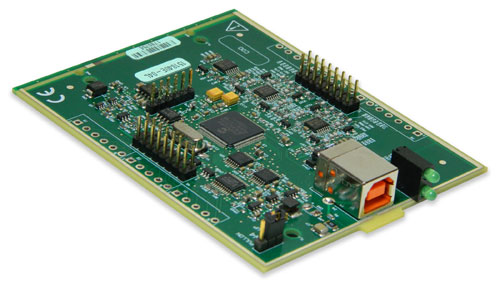

USB-200-OEM Series

12-Bit OEM Data Acquisition Boards with 8 Analog Inputs

Key Highlights

• 8 SE analog inputs
• ±10 V input range
• 12-bit resolution
• Up to 500 kS/s sample rate
• 8 digital I/O
• One 32-bit counter
• Up to 2 analog outputs
• 16 pin dual-row 0.100” headers (2x8) for ribbon cable connectivity
• Board only (no case, CD, or USB cable)
• Cased Versions Available

Software

• Support for DAQami, easy-to-use advanced data logging application to acquire,
• view, and log data
• TracerDAQ® for acquiring and displaying data and generating signals
• Universal Library includes support for Visual Studio® and Visual Studio® .NET,
• including examples for Visual C++®, Visual C#®, Visual Basic®, and Visual Basic® .NET
• Universal Library for Android™ includes support and examples for the Android 3.1
• platform (API level 12) and later
• DASYLab® and NI LabVIEW™ drivers
• MATLAB® Data Acquisition Toolbox™ support (USB-201-OEM, USB-204-OEM only)
• Linux® open-source drivers
• InstaCal™ software utility for installing, configuration, and testing
• Supported Operating Systems: Windows® 8/7/Vista®/XP, 32-bit or 64-bit;
• Android 3.1 (API level 12) and later; Linux®
