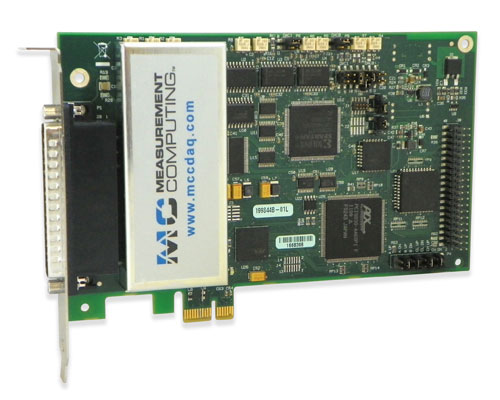

PCIe-DAS1602/16

16-Channel, 16-Bit, 100 kS/s Multifunction PCI Express Board

Key Highlights

• 16 SE/8 DIFF analog input channels (switch-selectable)
• 16-bit resolution
• Up to 100 kS/s sampling (100 kS/s max for any channel)
• Two 12-bit analog outputs
• 32 digital I/O
• Three 16-bit counters
• Connector and software-compatible with the PCIM-DAS1602/16



Software

• TracerDAQ® software included for acquiring and displaying data and generating signals
• Universal Library includes support for Visual Studio® and Visual Studio® .NET, with examples for Visual C++®, Visual C#®, Visual Basic®,
• and Visual Basic® .NET
• Comprehensive drivers for DASYLab®
• Supported by MATLAB® Data Acquisition Toolbox™
• InstaCal software utility for installation, calibration, and test
• ULx for NI LabVIEW™
• Supported Operating Systems: Windows 7/Vista/XP SP2, 32-bit or 64-bit
