BTH-1208LS Bundle

Wireless Multifunction DAQ Bundle with Android™-Based Tablet

Key Highlights

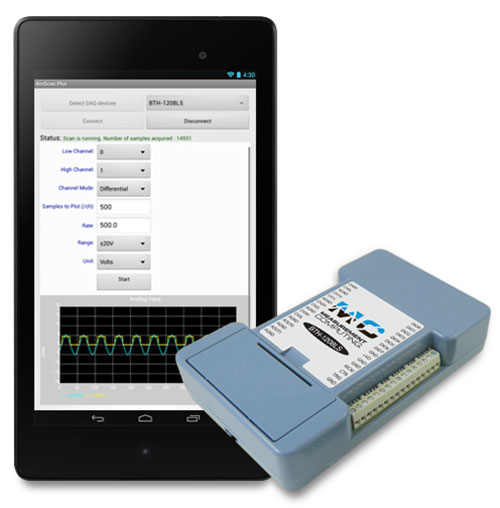

• DAQ bundle with BTH-1208LS and Google™ Nexus™ 7 tablet
• Acquires data over Bluetooth® or USB connection
• Eight 11-bit SE or four 12-bit DIFF analog inputs
• Sample Rate:
• Bluetooth: 1 kS/s continuous, 47 kS/s BURSTIO mode (12 k sample buffer)
• USB: 47 kS/s continuous
• Two 12-bit analog outputs
• Eight digital I/O
• One 32-bit event counter
• Battery or USB power options
• Learn the 5 Steps to Creating and Deploying Android™ DAQ Apps
• Includes a Google Nexus 7 (16GB) Android-based tablet
• Note: Available in U.S. only

Software

• Support for DAQami, easy-to-use advanced data logging application to acquire,
• view, and log data
• TracerDAQ® software for acquiring and displaying data and generating analog signals
• InstaCal software utility for installing, calibrating, and testing
• Universal Library includes support for Visual Studio® and Visual Studio® .NET,
• including examples for Visual C++®, Visual C#®, Visual Basic®, and Visual Basic® .NET
• Universal Library for Android™ includes support and examples for the Android 3.1
• platform (API level 12) and later
• Example ready-to-run demo apps for Android are available on Google Play™
• ULx for NI LabVIEW™
• Comprehensive drivers for DASYLab®
• Supported Operating Systems: Windows® 8/7/Vista®/XP SP2, 32-bit or 64-bit, Android 3.1 and later
• Supported Windows Bluetooth Stack Protocols: Microsoft® Bluetooth stack, Broadcom® Bluetooth stack (not supported by Windows XP SP3)
