USB-5100 Series

Multi-Channel Data Loggers

Key Highlights

• Stand-alone, remote multi-channel data loggers
• The USB-5104 is a high-accuracy, four-channel thermocouple data logger that records temperature in indoor environments

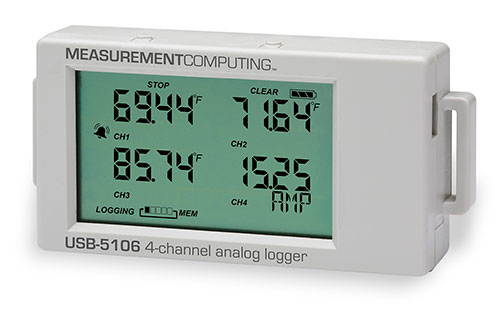

• The USB-5106 is a high-accuracy, four-channel analog data logger that records temperature, current, and voltage in indoor environments
• Built-in LCD screen displays readings and other device information
• Software-selectable logger alarm indicates high or low readings
• Logger control buttons for manual control of logging, display options, and event generation
• Powered by two AAA batteries (included)
• Compatible sensors sold separately

Software

• Easy to use USB-5100 Series software available as a free download
• Configure, launch and perform data read out of data loggers
• Displays logger status and current readings
• Plots, filters, and exports logger data (convert to .csv, .txt, or Microsoft® Excel® format)
• Create and save custom graphs to a project file
• Calculate minimum, maximum, average, and standard deviation statistics
• Supported Operating Systems: Windows® 8/7/XP, 32-bit or 64-bit (required Java™ Runtime Environment available for installation with software), and Mac® OS X 10.6.x or later, 32-bit or 64-bit
