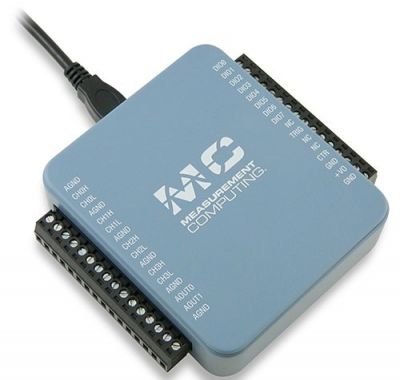

USB-230 Series

16-Bit, Up to 100 kS/s, Multifunction DAQ Devices with 2 Analog Outputs

Key Highlights

• 8 SE/4 DIFF analog inputs
• ±10 V input range
• Up to 100 kS/s sample rate
• 8 digital I/O, individually-configurable
• One 32-bit counter input
• Two 16-bit analog outputs
• No external power required
• Micro-USB Type B connector
• Board-Only OEM Versions Available

Software

• TracerDAQ® software included for acquiring and displaying data and generating signals
• Universal Library includes support for Visual Studio® and Visual Studio® .NET, including examples for Visual C++®, Visual C#®, Visual Basic®, and Visual Basic® .NET
• InstaCal™ software utility for installing, calibrating, and testing
• Support for DASYLab®
• ULx for NI LabVIEW™
• Supported Operating Systems: Windows® 8/7/Vista®/XP, 32-bit or 64-bit
