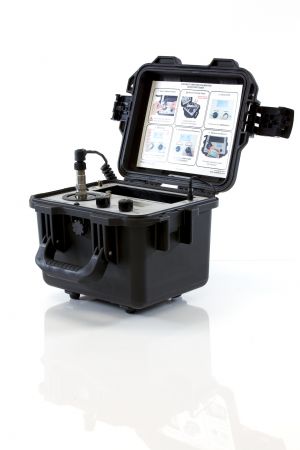

9100D Portable Shaker Table Vibration Field Tester
9100D Portable Shaker Table Vibration Field Tester
Confirm Vibration Alarms, Proximity Probes, Velocity Sensors, Accelerometers
Ideal for checking accelerometers, velocity transducers and proximity probes over a wide frequency (7 Hz to 10 kHz) and amplitude (20 g) operating range, the 9100D Portable Shaker Table is rugged throughout, with simple and elegant usability and robust internal components. In contrast to more elaborate laboratory style systems, the 9100D is a portable shaker table, making it perfect for testing in the field or at a customer's site.
9100D Features
- Rugged portability
- Sturdy internal shaker element design with carbon fiber composite armature flexures
- Legendary protection and quality of Pelican® Cases
- Watertight, crushproof
- Two press and pull latches
- Simple and elegant usability
- Adjust frequency ranges and amplitude settings with just two dials
- English or metric units on LCD screen
- Lightweight at 18 lb (8.2 kg) allowing for easy mobility
- Battery life up to 18 hours
- Precision control and stability
- Integral ICP® quartz reference accelerometer
- State of the art digital electronics
- Ideal for in-situ validation
- Ensure end-to-end functionality
- Confirm alarm trip points are set properly
- Guarantees accuracy and reliability of test
with integrated reference accelerometer traceable to NIST
- Validate from 7 Hz to 10 kHz (420 to 600 000 CPM)
- Amplitudes up to 20 g
