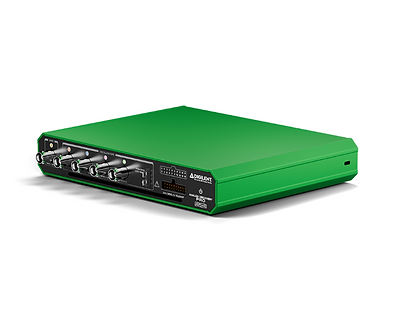

Analog Discovery Pro 2400 Series
Description:
The Analog Discovery Pro 2440 and 2450 deliver professional-grade performance for test engineers to debug embedded systems, validate circuit designs, or build custom automated workflows. The ADP2440 provides 12-bit resolution, 100+ MHz bandwidth, and up to 600 MS/s interleaved sampling, while the ADP2450 provides 8-bit resolution, 200+ MHz bandwidth, and 1 GS/s interleaved sampling.
Both models feature advanced visualization options including FFT, Histogram and Analog-to-Digital plots, as well as complex triggering conditions including such as Edge, Pulse, Timeout and Glitch. Dual Mode operation even allows two units to work together for 8 analog inputs, 32 digital I/O, and synchronized AWGs
Features:
USB 3.2 based Mixed Signal Oscilloscopes
Four analog inputs at 12-bit, 600 MS/s, 100+ MHz bandwidth
Dual Mode for seamless multi device integration
14-bit Arbitrary Waveform Generator with 15 MHz bandwidth
512 MB of deep buffer memory for low latency repeated triggers
16 digital inputs/outputs for the Logic Analyzer, Pattern Generator, and Protocol Generator
Software: Compatible with WaveForms, WaveForms SDK, LabVIEW, MATLAB
