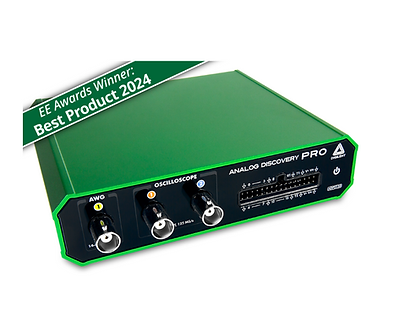

Analog Discovery Pro 2230
Description:
The Analog Discovery Pro 2230 is a mixed signal oscilloscope that features analog inputs, analog output, and digital I/O, with deep memory buffers all operating at up to 125 MS/s. Users can both receive and generate digital signals to test and analyze data from various devices while simultaneously powering those systems with its robust power supply.
The free WaveForms software leverages the ADP2230’s deep buffer memory, allowing hundreds of millions of samples to be stored and streamed back to the host computer, whilst allowing the user to view and capture complex data, perform spectral and network analysis, and quickly retrieve large amounts of data.
Features:
USB Mixed Signal Oscilloscope with deep memory buffers for long acquisitions
BNC connectors and an aluminum case
Two analog inputs – 50+ MHz bandwidth
One analog output – 15 MHz bandwidth
16 digital input/output channels
Sample rates up to 125 MS/s
Two power supply outputs
USB 3.0 communication speeds
Sync multiple devices for increased channel count
Software: Compatible with WaveForms, WaveForms SDK, LabVIEW, MATLAB
