Analog Discovery Pro 5000 Series
Description:

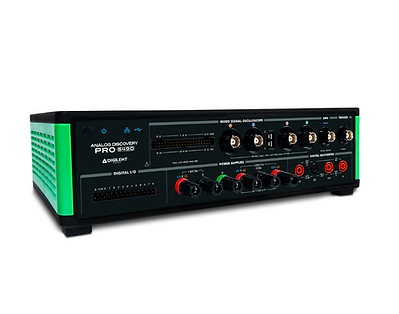

The Analog Discovery Pro 5470 & 5490 are Digilent's most advanced mixed signal oscilloscopes. Each product contains an integrated CAT II Digital Multimeter, three programmable power supplies, a dedicated trigger line, and an arbitrary waveform generator. The 5000 Series devices provide a range of bandwidths and higher sample rates for analog inputs to fit your needs – from a base of 100 MHz at 1 GS/s to 500 MHz at 2 GS/s.
Features:
CAT II Digital Multimeter functions: DC & AC current and voltage, resistance, continuity
CAT II Digital Multimeter measurements: voltage up to 300V, current up to 10A and 100mA
Four analog BNC inputs at 8-bit, 1.5GS/s, 350+ MHz bandwidth
One analog BNC output at 14-bit, 200 MS/s, 20+ MHz bandwidth
32 digital inputs with sampling rate of up to 1 GS/s
2 High-speed USB 2.0 ports for peripheral connection
Software: Compatible with WaveForms, WaveForms SDK, LabVIEW, MATLAB
