TC-32
Description:

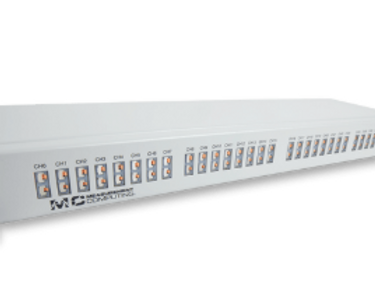

The TC-32 is a high-channel count, rack-mounted thermocouple measurement system and includes both USB and Ethernet interfaces. It features 32 channels (expandable to 64 using TC-32-EXP), 24-bit resolution for making precision temperature measurements, 3 S/s/ch sample rate, 8 digital inputs, and 32 digital outputs (expandable to 80 digital I/O). Software support includes DAQami, an out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays.
Features:
TC-32: 32 thermocouple inputs and 40 digital I/O
TC-32-EXP: with TC-32, expands to 64 thermocouple inputs and 80 digital I/O
24-bit resolution
3 S/s/ch sample rate
Supports thermocouple types J, K, R, S, T, N, E, and B
40 digital I/O (80 digital I/O when using TC-32-EXP)
USB and Ethernet interfaces
