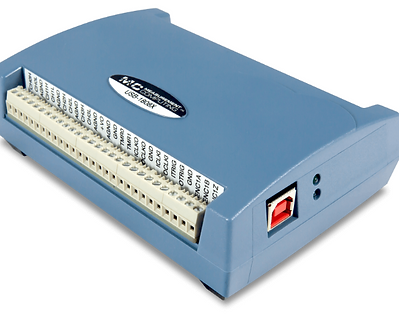

USB-1808

Description:

The USB-1808X features eight high-precision, simultaneous analog inputs, 18-bit resolution, 200 kS/s/ch sample rate, two analog outputs, 4 digital I/O, two counters, and two quadrature encoder inputs. OEM version removes enclosure and screw terminals and adds headers. Software support includes free DAQami software for out-of-the-box data logging, viewing of data, and generating signals.

Features:

  • 8 SE/8 DIFF simultaneous analog inputs

  • 18-bit resolution

  • 200 kS/s/channel sample rate

  • ±10 V, ±5 V, 0-10 V, 0-5 V input ranges

  • Two 16-bit analog outputs

  • Four digital I/O

  • Two counter inputs, Two timer outputs

  • Two quadrature encoder inputs

  • No external power required
