USB-2408
Description:

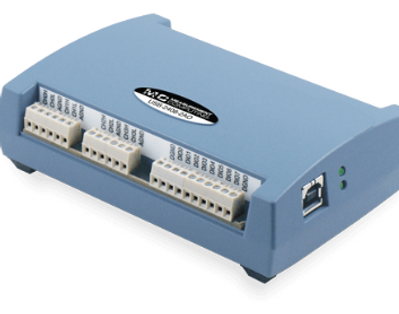

The USB-2408-2AO data acquisition device has 24-bit resolution for highly accurate measurements. Features include thermocouple or voltage configuration per channel along with digital and counter functions. Up to two analog outputs are available. Software support includes DAQami, an optional out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays.
Features:
6 single-ended (SE) or eight differential (DIFF) analog input channels
24-bit resolution, 1 kS/s sample rate
Two 16-bit analog output channels
Eight digital I/O channels
Two 32-bit counter channels that count TTL pulses
500 VDC input isolation between field wiring and the USB interface.
Screw terminals for field wiring connections
Poowered by the +5V USB supply from your computer; no external power is required.
