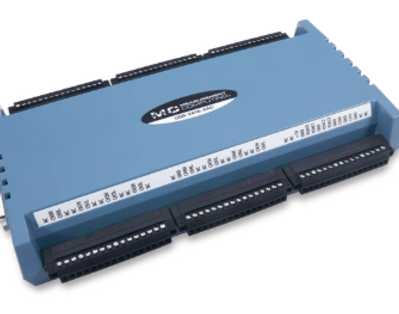

USB-2416
Description:
The USB-2416-4AO is ideal for higher channel count applications measuring voltage or thermocouples. Features include expandable analog and digital I/O along with counter functions. It features 32 SE/ 16 DIFF, 24-bit analog inputs for measuring voltage or thermocouples measurements (thermocouples are measured in DIFF mode), 1 kS/s sample rate, four analog outputs, eight digital I/O, and two counter inputs. AI-EXP32 is an optional expansion module that provides an additional 32 SE/16 DIFF analog inputs and 16 digital I/O.
Software support includes DAQami, an out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays.
Features:
USB-2416-4AO: 32 SE/ 16 DIFF analog inputs
USB-2416-4AO and AI-EXP32: 64 SE/ 32 DIFF analog inputs
24-bit resolution, 1 kS/s sample rate
Supports thermocouple types J, K, R, S, T, N, E, and B
±20 V, ±10 V, ±5 V, ±2.5 V, ±1.25 V, ±625 mV, ±312.5 mV, ±156.25 mV, ±78.125 mV input ranges
Four 16-bit analog outputs and two counter inputs
Eight digital I/O (24 digital I/O when using AI-EXP32)
