USB-DIOXX Series
Description:

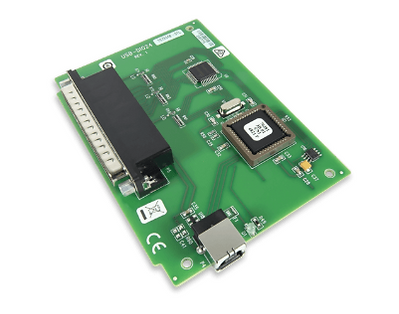

The USB-DIO24 and USB-DIO37 are digital devices that provide logic-level, bidirectional digital I/O and counter operation. Both feature 24 bits of digital I/O and one 32-bit external event counter. The devices are powered by the +5 volt USB supply. All I/O connections are made to a 37-pin connector.
The USB-DIO32HS is a high-speed digital I/O device and features 32 channels, up to 8 MS/s update rate, independent input and output scan clocks, and digital and pattern triggering. Each port is configured independently, so both software polling and hardware scanning operations can be performed simultaenously.
Software support includes DAQami, an out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays.
Features:
32 channels
Input scan rate up to 8 MS/s
Update rate up to 8 MS/s
Pattern detection and generation
Independent input and output scan clocks
24 mA source, 10 mA sink output current
External trigger and clock inputs
No external power required
