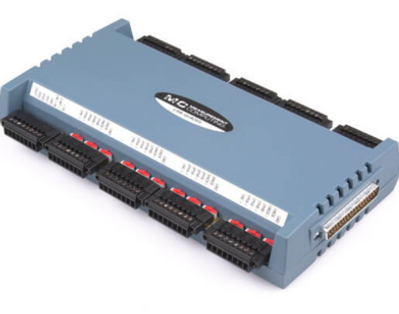

USB-QUAD08
Description:
The USB-QUAD08 quadrature encoder device provides configurable counter input channels along with timer outputs and digital I/O. Features include programmable debounce times, multiple counting modes, and triggering and pacing options. Software support includes drivers for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW™, MATLAB®, and Python™.
Features:
Eight counter inputs (quadrature/non-quadrature mode)
Simultaneous input and decoding of up to eight incremental quadrature encoders
High-speed pulse counter for general counting applications
10 MHz, 16-, 32-, 48-bit resolution, ± 12 V input range
Indicator LEDs show the status of each counter/encoder input
16 debounce settings
Eight digital I/O bits
Configurable as input or output
Digital input bits accept voltage inputs up to 50VDC (42.4 Vpk)
Digital output bits are open collector, with clamping diodes for CEMF (counter-electromotive force) suppression
