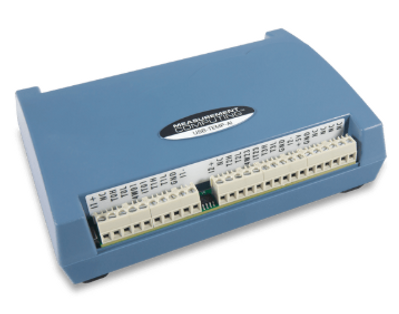

USB-TEMP & TC Series
Description:
The USB-TC features eight, 24-bit analog inputs for precise thermocouple measurements, 2 S/s/channel sample rate, and 8 digital I/O., while the USB-TEMP features the same specifications and accommodates a wider range of sensor types (thermocouple, RTD, thermistor, and semiconductor).
The USB-TEMP-AI also features eight, 24-bit analog inputs and a 2 S/s/channel sample rate. Four channels can be configured to measure various temperature sensors, while the other four channels are capable of measuring voltage and offer the following input ranges; ±10, ±5, ±2.5, ±1.25 V. Eight digital I/O and one counter input are also provided.
Features:
Eight DIFF analog inputs and eight digital I/O
24-bit resolution, 2 S/s/channel sample rate
USB-TC: Eight thermocouple inputs (types J, K, R, S, T, N, E, and B)
USB-TEMP: Eight temperature inputs (thermocouple, RTD, thermistor, semiconductor sensor)
USB-TEMP-AI: Four temperature inputs + four voltage inputs (±10 V, ±5 V, 0-10 V, 0-5 V input ranges)
One counter input (USB-TEMP-AI only)
