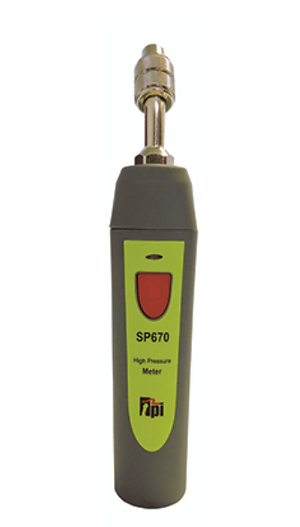

SP670 High Pressure Probe

Description:

The TPI SP670 Smart Pressure Probe is used to measure pressure on refrigeration systems. It connects to a smart device. It sends live measurement data using the TPI View App on your smart dvice and can be used in conjunction with the SP323 Smart Temperature Clamp Probe to calculate superheat and subcooling using the App. The angled ¼´fitting allows access to service ports in close spaces.

Features:

  • Pressure Range: -14.7 psi to 870 psi (-1 bar to 60 bar)

  • Over pressure protected to 1000 psi

  • Input connection: 7/16"-20 UNF / ¼" SAE

  • Adjustable Schrader valve depressor for use on worn valves

  • Ideal for checking for compressor leaks

  • 160 hours battery life with 3 AAA alkaline batteries
