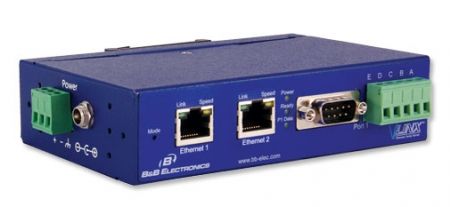

Vlinx VESR321 Isolated Ethernet Serial Servers

ISOLATED INDUSTRIAL ETHERNET SERIAL SERVERS

VESR321 isolated servers connect serial devices (RS-232, RS-422 or RS-485) to Ethernet networks, enabling the serial device to become a node on the network. The serial ports can be accessed over a LAN/WAN using Direct IP Mode, Virtual COM Port, or Paired Mode connections.

  • Three-way Isolation
  • Ethernet Pass-through Port available
  • Ethernet Fiber Options
  • Heavy Industrial EN61000-6-2 rated
  • Wide Operating Temperature



POWER
Source External
Input Voltage 10 to 48 VDC (58 VDC Maximum)
Connector Removable Terminal Block (12-28 AWG and barrel connector)
Power Consumption 4 Watts

Product Documentation

Datasheet

PRODUCTS



MECHANICAL
LED Indicators Ready, Power, Serial Data, Ethernet Speed, Ethernet Link
Switches Reset Button (Mode)
Dimensions 13.823 x 8.633 x 3.500 cm (5.442 x 3.399 x 1.378 in)
Enclosure DIN Rail, Panel, metal, IP30



ENVIRONMENTAL
Operating Temperature -40 to 80°C (-40 to 176°F)
Operating Humidity 10 to 95% Non-condensing
MTBF 86,882 hours
MTBF Calculation Method Based on MIL 217F using Parts Count Reliability



OTHER
Connection Mode Server, Client, VCOM, Paired
Client Connection At power up or upon data arrival
Search Search direct COM and Ethernet Auto Search or specific IP
Diagnostics Display PC IP, ping, test VCOM, save test config (text readable)
Firmware Upgrade Vlinx Manager



CONFIGURATION SOFTWARE
Vlinx Manager Win XP (32/64 bit), 2003 Server (32/64 bit), Vista (32/64 bit), 2008 Server (32/64 bit), Win 7 (32/64 bit), Windows 2008 Server



ETHERNET PASS-THROUGH PORT
Standards IEEE 802.3, 802.3u, 802.3x
Processing Type Store and Forward with 802.3x full duplex, non blocking flow control
Flow Control IEEE 802.3x flow control, back pressure flow control
MAC Address Table 2K




NETWORK
Serial Memory 8KB per port
Network Memory 8 KB
LAN 10/100 Mbps Auto-detecting, 10BaseT or 100BaseTX
Ethernet IEEE 802.3 auto detecting & auto MDI/MDI-X, 10BaseT and 100Base T



PROTOCOLS
Protocols TCP, IPv4, UDP, ARP, HTTP 1.0, ICMP/PING, DHCP/BOOTP
IP Mode Static, DHCP
TCP/UDP User definable



SERIAL TECHNOLOGY
RS-232 TD, RD, RTS, CTS, DTR, DSR, DTD, GND
RS-485 2-Wire Data A(-), Data B(+), GND
RS-422/485 4-Wire TDA(-), TDB(+), RDA(-), RDB(+), GND
Serial Connector DB9M RS-232, Terminal Block RS-422/485
Data Rate Up to 230.4 Kbps



APPROVALS/CERTIFICATIONS
Emissions FCC Class B, CISPR Class B (EN55022), NEMA TS2 (VESR321)
CE EN61000-6-2:2005 (Heavy Industrial)
EN61000-4-2:2008 (ESD) +/-8kV Contact, +/-15kV Air
EN61000-4-3:2006 (RI) 10V/m, 80-1000MHz; 3V/m, 1.3 to 2.7 GHz
EN61000-4-4:2004 (EFT Burst) +/-2kV DC ports; +/-1kV signal ports
EN61000-4-5:2005 (Surge) +/- 0.5 kV DC Ports, +/- 1 kV Signal Ports
EN61000-4-6:2005 (CI) 10 VRMS, 0.15 to 80 MHz
EN61000-4-8:2001 (Magnetic) 10A/m, 50Hz & 60Hz
Shock IEC60068-2-27 50G peak, 11ms, 3 axes
Vibration IEC60068-2-6 10-500Hz, 4G, 3 axes
Freefall (Drop) IEC60068-2-32 10 total drops from sides, corner and edges, 1M
