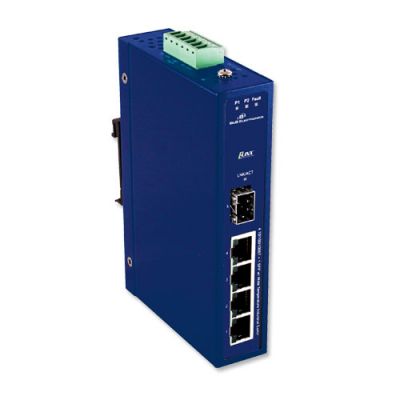

Elinx EIR400 Series
Unmanaged 4, 5, 8, & 16 Port Gigabit Switches
The EIR400 Gigabit Series is equipped with 4 to 16 port models and up to 2 SFP ports for optional fiber optics. All Gigabit Ethernet switches carry Industrial specifications and wide operating temperature range.
| Features | Benefits |
| Gigabit Speeds | Higher throughput for high bandwidth networks |
| Wide Temperature Rating on –T models | Suited for extreme temperature environments |
| Rugged IP30 DIN/Panel Mount Metal Case | Built tough for harsh industrial environments |
| Dual Power Inputs with Alarm Output | Redundancy ensures the network keeps running |
(port #) indicates the port is a combination port, where the copper media is shared with the SFP slot. Once the SFP slot is filled with an SFP module, the copper port is disabled.
Specifications
> Input Voltage: Dual 12 to 48 VDC, Reverse Polarity Protection
> Power Connection: Removable Terminal Block
> Fault Output: Relay Output
> Operating Temperature: -40 C to 75 C
> Enclosure: IP30 Metal
> Mounting: DIN Rail or Panel Mount
Details
Gigabit
B&B Electronics’ line of unmanaged EIR400 series Ethernet switches address applications requiring Gigabit (1000Base) Ethernet. All of these switches are DIN Rail or panel mountable and accommodate two power inputs along with an Alarm Relay Output. The –T models are wide temperature rated at -40 to 75ºC. For added flexibility and future expansion options, many models support a dual function port, where the copper Ethernet and SFP ports are shared. The wide range power input on these Gigabit PoE switches makes each switch suitable for a variety of applications.
