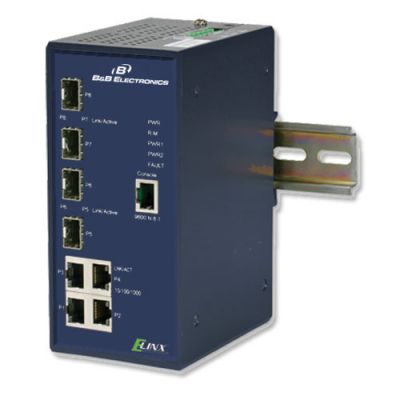

Elinx EIR500 EIR600 Series
Ethernet gigabit switches - Redundant, ultra-fast recovery, easy configuration
Elinx EIR500 and EIR600 managed gigabit switches provide powerful functionality in an IP30 DIN mount package. If an Industrial gigabit Ethernet switch is required, choose a product from the EIR600 series.
Buy and compare our managed gigabit Ethernet switches below. Click on each model number to view a photo and see the Details, Specs, and Documentation/Downloads tabs for further information.
(port #) indicates the port is a combination port, where the copper media is shared with the SFP slot. Once the SFP slot is filled with an SFP module, the copper port is disabled.
Buy and compare our managed gigabit Ethernet switches below. Click on each model number to view a photo and see the Details, Specs, and Documentation/Downloads tabs for further information.
(port #) indicates the port is a combination port, where the copper media is shared with the SFP slot. Once the SFP slot is filled with an SFP module, the copper port is disabled.
Details
Designed for industrial applications, these Industrial gigabit Ethernet switches contain all the standard features of other switches, such as IGMP Snooping, Port Based VLAN, 802.1Q Tag VLAN, auto MDI/MDI-X, auto negotiation, store and forward switching, STP, RSTP, Web Based Management, Ingress Packet Filtering, and Egress Rate Control. These managed gigabit switches also come with important industrial features to ensure reliability in an industrial application. Redundant Ring Technology with coupling ring and dual homing allows automatic recovery in less than 20ms for EIR600 series and less than 300ms for EIR500 series. Dual power inputs ensure reliability. A relay alarm output for port failure notification. If an Industrial gigabit Ethernet switch is required, choose a product from the EIR600 series.
| Features | Benefits | |
| Fully managed | Manage network operation, configuration, and security via web interface | |
| Redundant ring technology | Ultra-fast recovery time | |
| Alarm outputs | Detect and report network irregularities before serious problems happen | |
| Dual power inputs | Keeps power on continuously and applications running non-stop | |
| IP30 case, DIN or panel mount | Ideal for industrial applications, hazardous environments | |
| Gigabit Ethernet switch options | Higher throughput speeds for high bandwidth networks |
