6000 Series

Ethernet-Based 16-bit, 200 kHz Data Acquisition Systems

Key Highlights

Analog input, analog output, frequency input, timer output, and digital I/O; all in one compact and portable enclosure

Built-in Ethernet connection provides continuous streaming to the PC with no data loss

16-bit, 200 kHz A/D converter

Expand analog and digital channel count with DBK expansion options

Powerable from 10 to 30 VDC, or with included AC adapter

Synchronous analog, digital, and frequency measurements

Four channels of 16-bit, 100 kHz analog output (models /2001 and /2020)

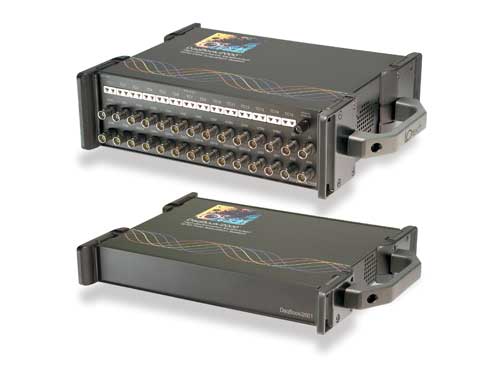

DaqBook/2020 offers convenient front panel connectors for thermocouple, voltage and frequency measurements all in one box

DaqBooks attach to over 40 DBK signal conditioning options to assemble an affordable system, customized to your particular application

Software

DaqView Out-of-the-Box software application is included for effortless data logging and analysis

Comprehensive drivers for DASYLab®, NI LabVIEW™, Visual C++®, Visual C#®, Visual Basic®, and Visual Basic® .NET

DaqCal software application for easy user calibration

Supported Windows® Operating Systems: Windows 7/Vista/XP SP2,
32-bit or 64-bit
