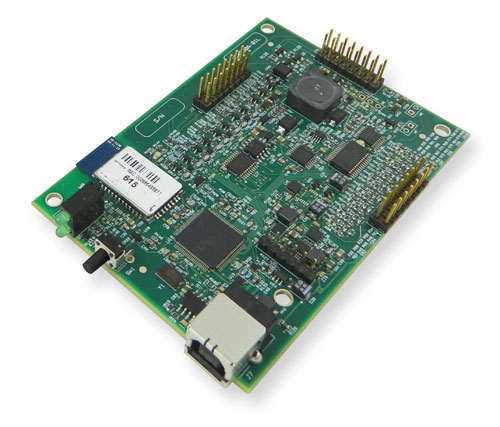

BTH-1208LS-OEM


Wireless Multifunction OEM DAQ Board with Android™ and Windows® Support

Key Highlights

  • Acquires data over Bluetooth™ or USB connection
  • Eight 11-bit SE or four 12-bit DIFF analog inputs
  • 1 kS/s sampling over Bluetooth, 50 kS/s sampling over USB
  • Two 12-bit analog outputs
  • Eight digital I/O
  • One 32-bit event counter
  • Battery or USB power options
  • Cased Version Available
  • Learn the 5 Steps to Creating and Deploying Android™ DAQ Apps
  • NOTE: Due to regulatory requirements, the BTH-1208LS and BTH-1208LS-OEM can only be sold in the United States, Canada, EU, Australia, and New Zealand. Please contact your distributor for countries outside these regions.


Software

  • Support for DAQami, easy-to-use advanced data logging application to acquire,
  • view, and log data
  • TracerDAQ® software for acquiring and displaying data and generating analog signals
  • InstaCal software utility for installing, calibrating, and testing
  • Universal Library includes support for Visual Studio® and Visual Studio® .NET,
  • including examples for Visual C++®, Visual C#®, Visual Basic®, and Visual Basic® .NET
  • Universal Library for Android™ includes support and examples for the Android 3.1
  • platform (API level 12) and later
  • Example ready-to-run demo apps for Android are available on Google Play
  • ULx for NI LabVIEW™
  • Comprehensive drivers for DASYLab®
  • Supported Operating Systems: Windows® 8/7/Vista®/XP SP2, 32-bit or 64-bit, Android 3.1 and later
  • Supported Windows Bluetooth Stack Protocols: Microsoft® Bluetooth stack, Broadcom® Bluetooth stack (not supported by Windows XP SP3)


Adobe PDF Product Data Sheet - PDF printable
Adobe PDF Product User's Manual - PDF printable
