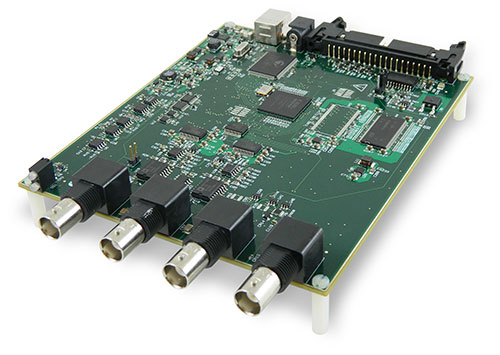

USB-2020

12-Bit, 20 MS/s, Simultaneous Sampling, Ultra High-Speed USB Board

Key Highlights

• Two 20 MS/s analog inputs
• – Simultaneous sampling
• – 1 A/D per channel
• – 12-bit resolution
• – ±10 V, ±5 V, ±2 V, ±1 V voltage ranges (software-selectable)
• – 17 MHz input bandwidth
• 64 megasample onboard memory
• – 40 MS/s overall rate to onboard memory when acquiring from both channels
• – 8 MS/s throughput to host computer
• Analog and digital triggering
• – Level and edge
• Analog and digital gating
• Internal or external pacing of analog scans
• Eight digital I/O
• BNC connectors and 40-pin auxiliary connector for signal connections
• Includes USB cable, power supply (required), and nylon standoffs
• Small, compact design (7.1” x 5.6”) for OEM and embedded applications

Software

Support for DAQami, easy-to-use advanced data logging application to acquire,
view, and log data

TracerDAQ® software for acquiring and displaying data and generating analog signals

Universal Library includes support for Visual Studio® and Visual Studio® .NET, including examples for Visual C++®, Visual C#®, Visual Basic®, and Visual Basic® .NET

InstaCal software utility for installing, calibrating, and testing

ULx for NI LabVIEW™

Supported Operating Systems: Windows® 8/7/Vista®/XP, 32-bit or 64-bit
