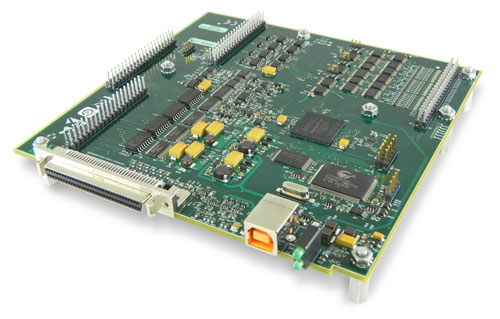

USB-2600 Series

16-Bit, 1 MS/s, High-Speed DAQ Boards

Key Highlights

• Designed for OEM and embedded applications
• 16-bit resolution
• 1 MS/s sample rate
• Up to 64 single-ended analog inputs
• Up to four 16-bit, 1 MS/s analog outputs
• 24 digital I/O
• Four 32-bit event counters
• Four timer outputs
• USB powered (no external power required)
• Small, compact design (6" x 5.93")
• Custom versions available for OEMs (contact factory)

Software

• Support for DAQami, easy-to-use advanced data logging application to acquire,
• view, and log data
• TracerDAQ® software for acquiring and displaying data and generating analog signals
• Universal Library includes support for Visual Studio® and Visual Studio® .NET,
• including examples for Visual C++®, Visual C#®, Visual Basic®, and Visual Basic® .NET
• Universal Library for Android™ includes support and examples for the Android 3.1
• platform (API level 12) and later
• Example ready-to-run demo apps for Android are available on Google Play™
• InstaCal software utility for installing, calibrating, and testing
• ULx for NI LabVIEW™
• Comprehensive drivers for DASYLab®
• Supported Operating Systems: Windows® 8/7/Vista®/XP SP2, 32-bit or 64-bit; Linux®
