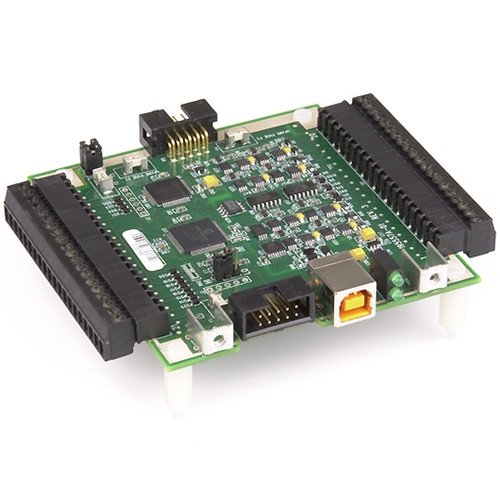

USB-7202

16-Bit, 100 kS/s, Multifunction DAQ Board with 8 Simultaneous Analog Inputs

Key Highlights

• 8 channels of 16-bit analog input
• 100 kS/s max total throughput (200 kS/s BURSTIO mode), 50 kS/s on any one channel
• Simultaneous sampling (1 A/D converter per input)
• 8 digital I/O
• One 32-bit event counter
• USB/104 form factor
• Stackable 3.55" x 3.75" board dimensions
• View the complete USB-7000 Series

Software

• Support for DAQami, easy-to-use advanced data logging application to acquire,
• view, and log data
• TracerDAQ® for acquiring and displaying data and generating signals
• Universal Library includes support for Visual Studio® and Visual Studio® .NET,
• including examples for Visual C++®, Visual C#®, Visual Basic®, and Visual Basic® .NET
• Universal Library for Android™ includes support and examples for the Android 3.1
• platform (API level 12) and later
• DASYLab® and NI LabVIEW™ drivers
• InstaCal™ software utility for installing, configuration, and testing
• Supported Operating Systems: Windows® 8/7/Vista®/XP, 32-bit or 64-bit;
• Android 3.1 (API level 12) and later
